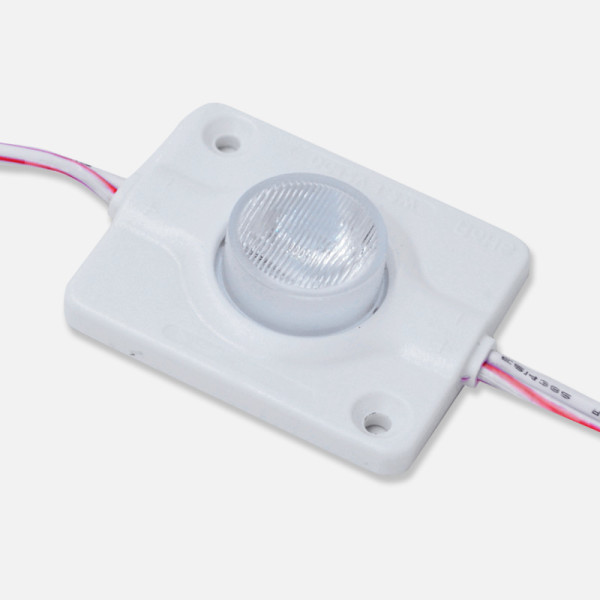

Injection Module 1.2W 15X43íp

This Injection module is regular for light box or signage. Take SMD2835 LED as light source, no light spot, low decay and good consistency. With low consumption, high brightness, free maintenance and good heat dissipation.
Its injection outer cover, beautiful and unique appearance, with 20 or 30pcs modules as a chain and each module can be used individually.

LED: SMD2835*1pc
Voltage: DC 12V
Power:1.2W
Lumen: 105LM
CCT:6000-12000K
Beam angle: 15*43°
Size:L45mm* 35mm*10mm
IP Grade: IP65
Status：Regular

Application：
Application for 10-15cm thickness light box with single side, or 14-30cm light box with double sides, if covered by white 3M P2 fabric, the transmittance can be about 40%.
