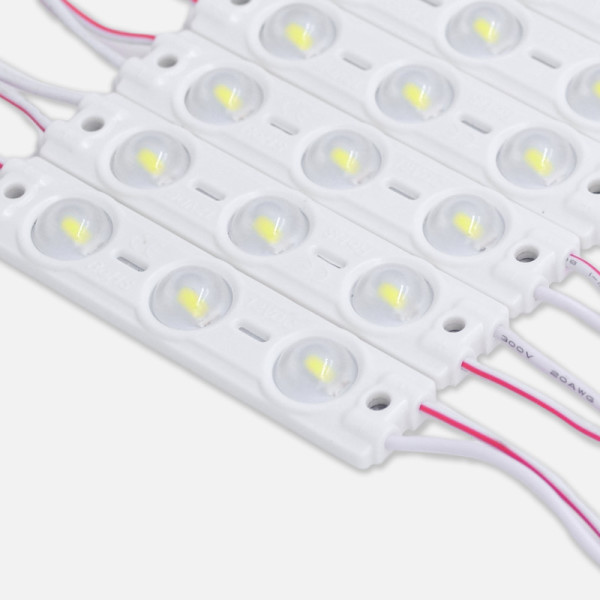

Injection Module SMD 2835 0.72-1.2W

This Injection module is regular for light box or signage. Take SMD2835 LED as light source, no light spot, low decay and good consistency. With low consumption, high brightness, free maintenance and good heat dissipation.
Its injection outer cover, beautiful and unique appearance, with 20 or 30pcs modules as a chain and each module can be used individually.

LED: SMD2835*3pc
Voltage: DC 12V
Power: 0.72W/1.2W
Lumen: 60LM/95LM
CCT:6000-12000K
Beam angle: 160°
Size:L72mm*15.5mm*6.8mm
IP Grade: IP65
Status：Regular

Application：
Application for 6-18cm thickness signage board, if 3mm thickness acrylic white panel, the transmittance can reach 55%.
