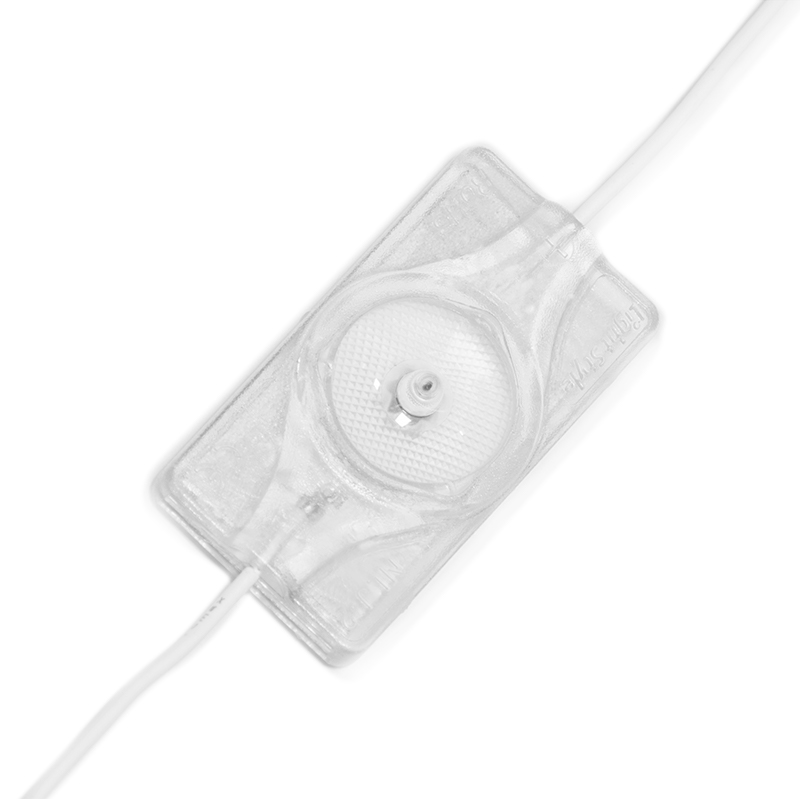

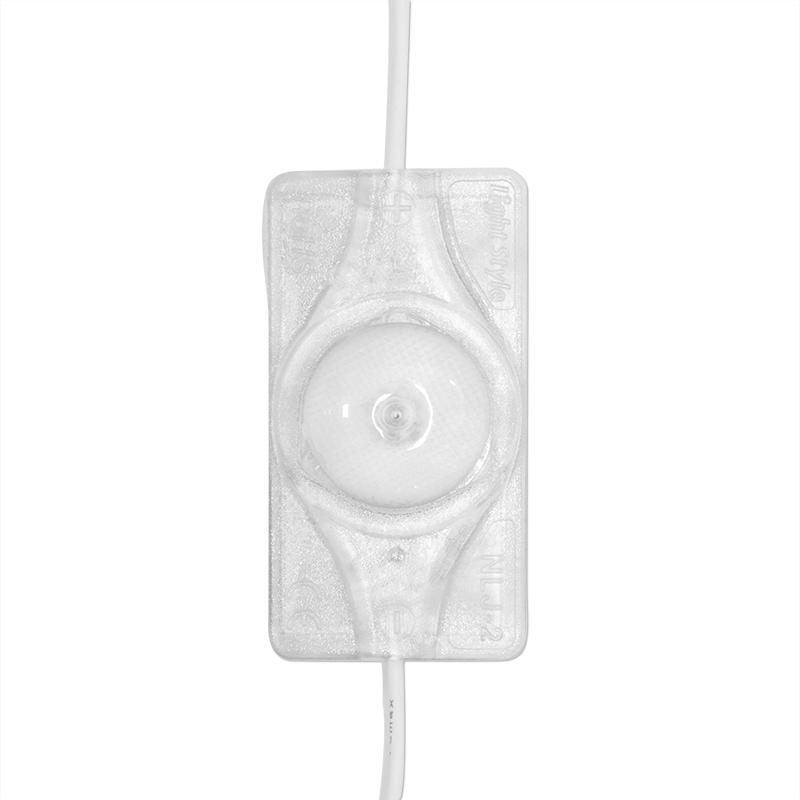

Customized LED Module

Description：

Description：
This Product is flexible chain LED-lighting system designed specifically for back lighting of large channel letters, thin lightboxes and large scale flex-face sign boxes.
Brightness is up to 306 lm, efficiency is up to 168 lm/W @ 350 mA and color rendering index CRI is 70.
Insulation and IP-ratings are very good due the PC over moulded construction.
Module is engineered to being economically effective solution to signage lighting without compromising product quality.

LED: LG3535
Voltage: 3V/EA
Power: 2.3Max @700mA
CCT: 6500K
Beam angle: 160°
Size: 40mm* 21mm
IP Grade: IP67
Status：Not Released/Blocked

Application：
Channel Letter, Thin light box, Flex-face sign box

Product Code：
XY-0040212
